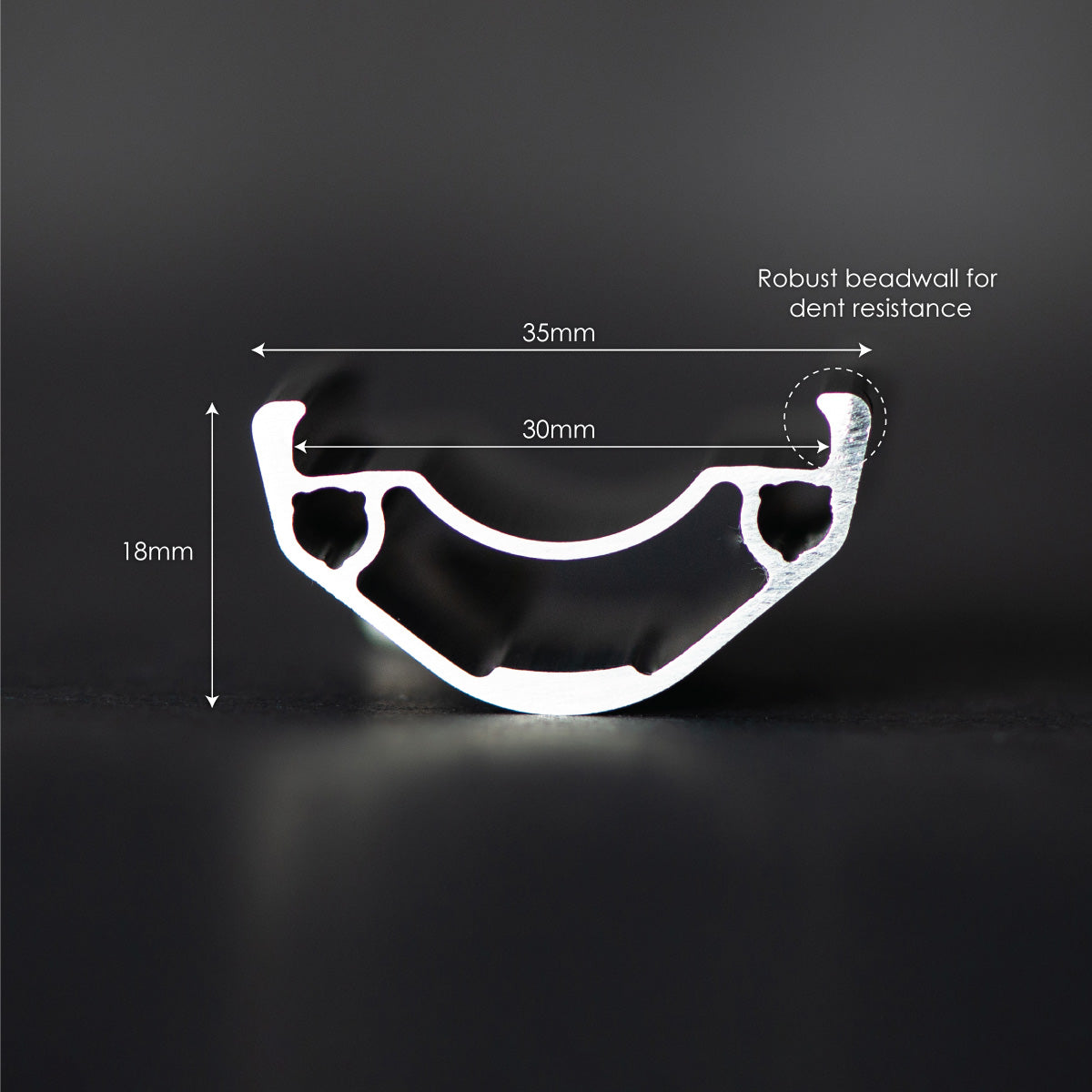

The Ally is our latest rim offering and is the workhorse of the fleet. Building off the BA30 and Phase30 design, the Ally offers the same robust beadwall and 30mm bed but in a pinned construction helping to keep the cost down.
The Ally shares the same cavity construction as the Phase30, with symmetric nipple drilling, designed to get you rolling on a budget.

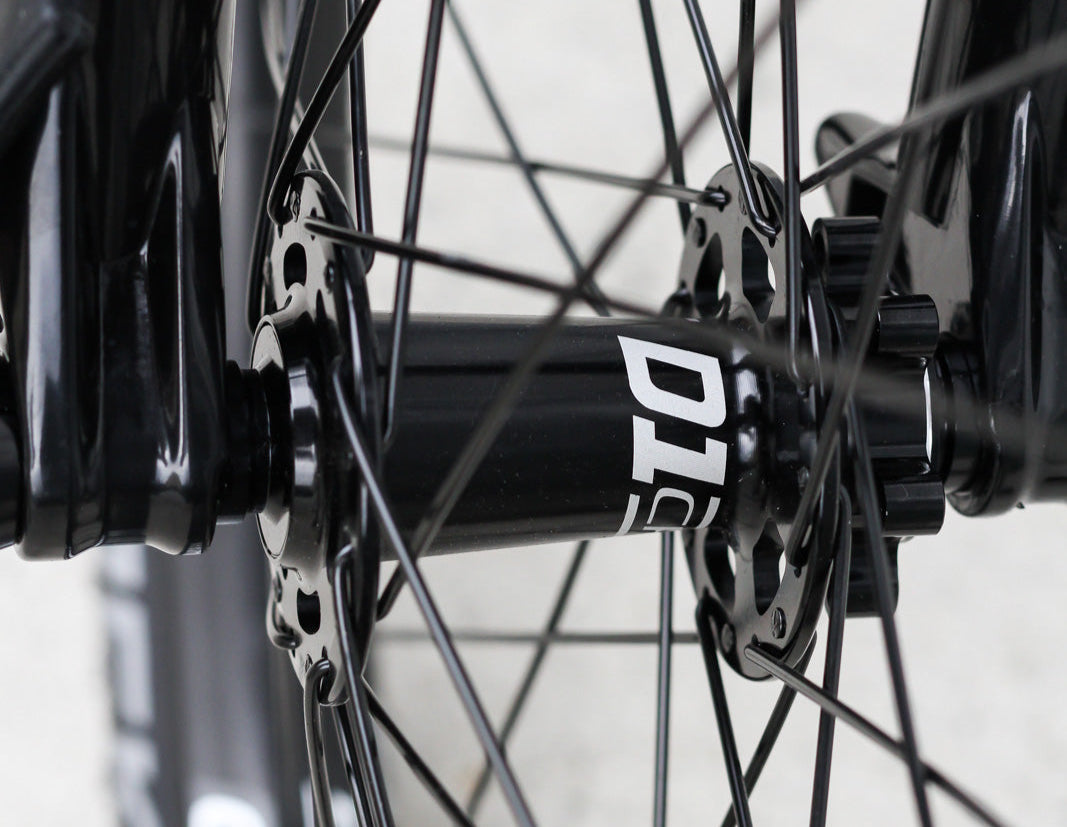

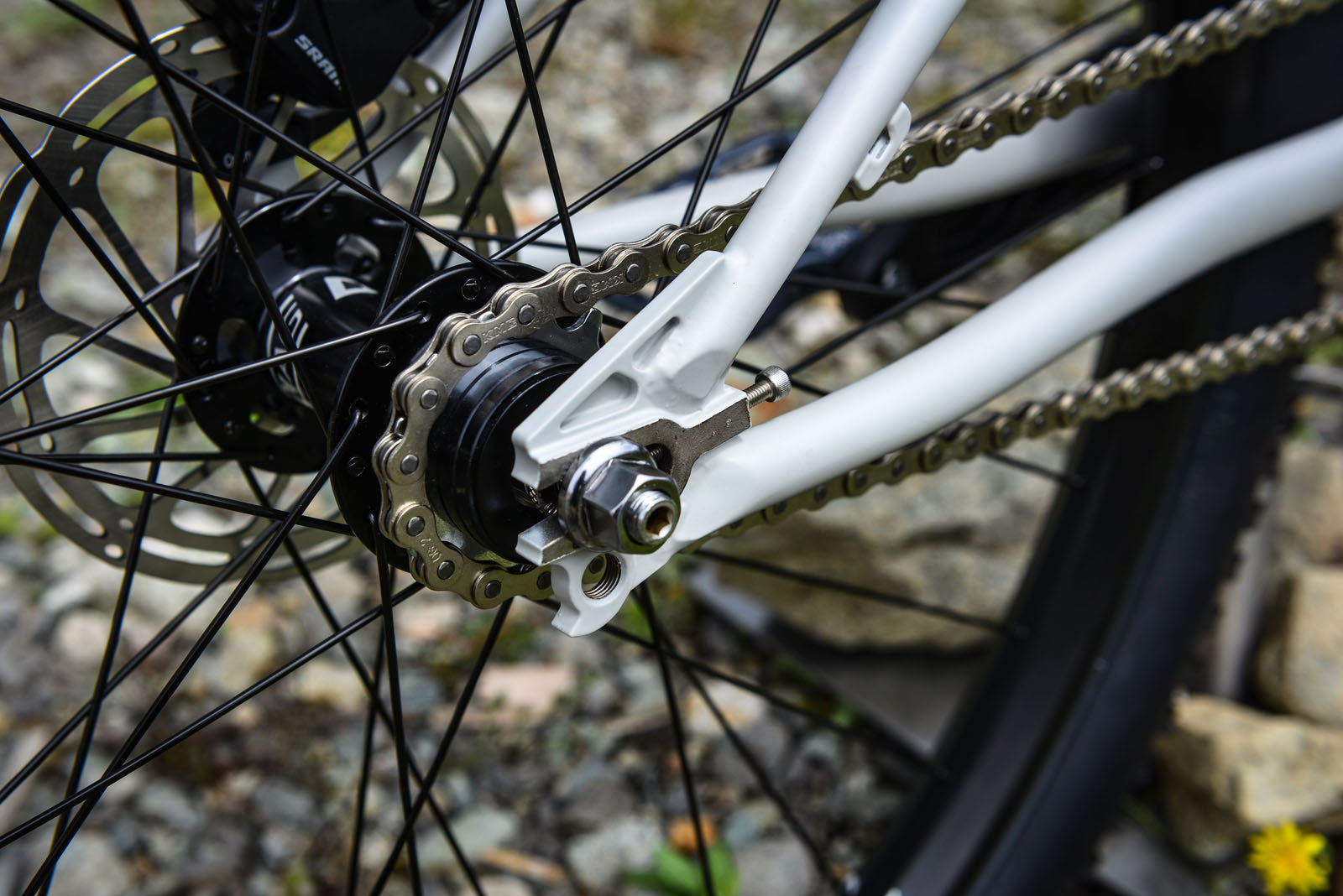

Paired with our D1 hub, a 16t singlespeed cog, axles and Maxxis Ikon tires, this is the perfect 26 inch wheelset for any dirt jump build. Bolt it to your bike and off you go.
Material // Premium extruded alloy
Finish // Anodised extrusion / Pinned
Profile // Cavity / Impact resistant design
Tubeless // Tubeless Ready
Rim Weight // 26: 555g / 27.5: 585g / 29: 627g
Internal Width // 30mm
Valve // Presta
Max Tire Pressure 2.4" // 45PSI
Max Tire Pressure 2.8" // 30PSI
Max Spoke Tension // 125KgF
Build Info // 26" ERD: 540mm / 27.5" ERD: 564mm / 29" ERD: 602mm
Hole Count // 32
Spacing // 100 x 15mm
Spacing // 135 x 10mm
