We set about designing The Juice as we had more and more people asking for a high-quality, durable dirt jumper for kids, in 20” and 24” wheel sizes. We wanted to design a range, especially for smaller rippers who ride at a high level and need a bike that's up to the task.
The Juice is for all the little shredders out there who just can’t wait to be tall enough to get on a Monk.

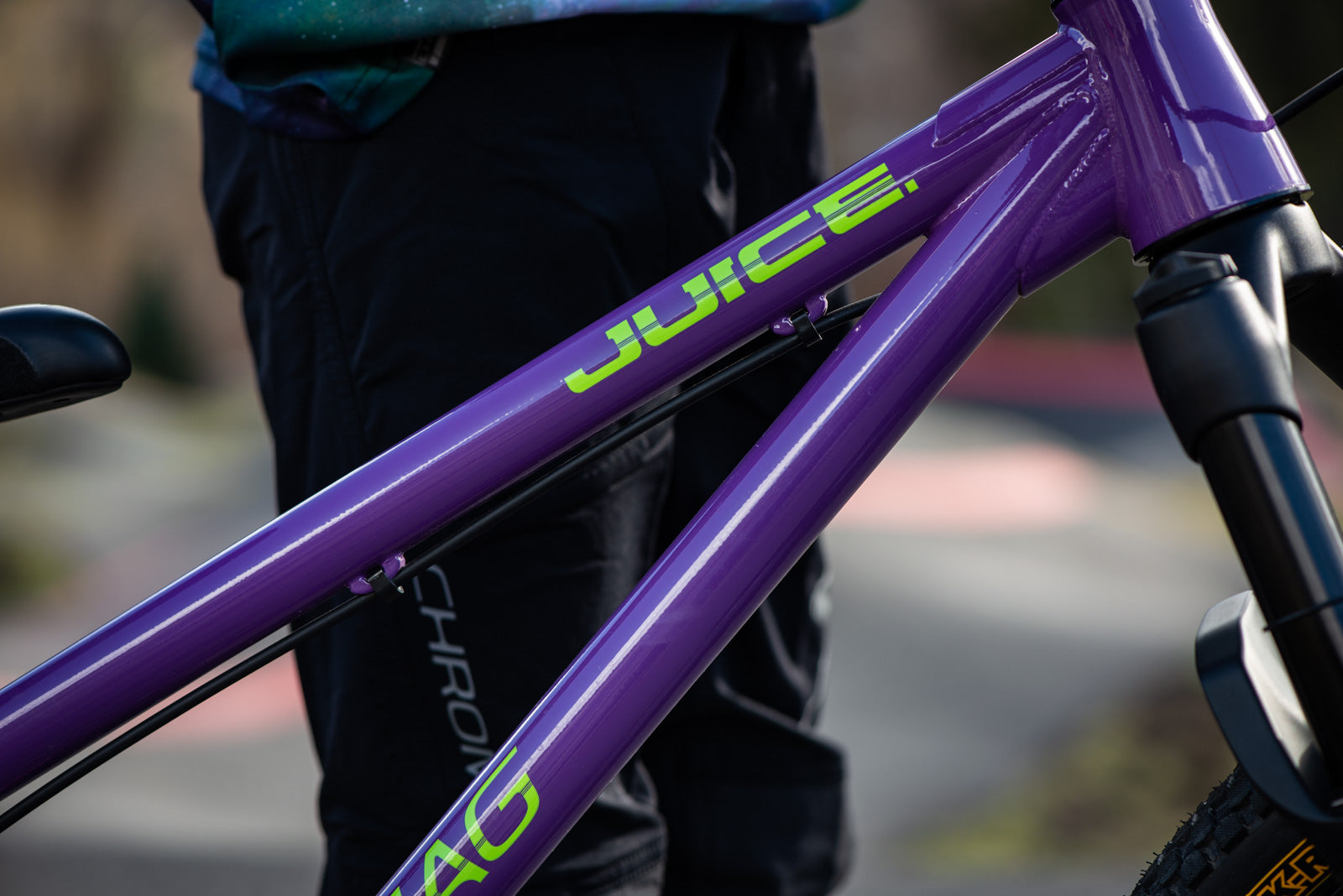

You can expect the same high quality and features that we put into the Monk, like the great ride feel of our 4130 cro-mo steel tubing, and head-to-toe Chromag components including our new kid’s specific Vanguard handlebar.
The horizontal droputs with integrated chain tugs are a key feature on a bike like this. Not only do they make it easy to set single-speed chain tension, but they also help to keep the rear wheel in place and aligned under pedal torque or even landing sideways (usually while learning 180’s and 360’s!). It’s these little deisgn hits and features that make The Juice right at home on the pump track, dirt jumps or in the skatepark.

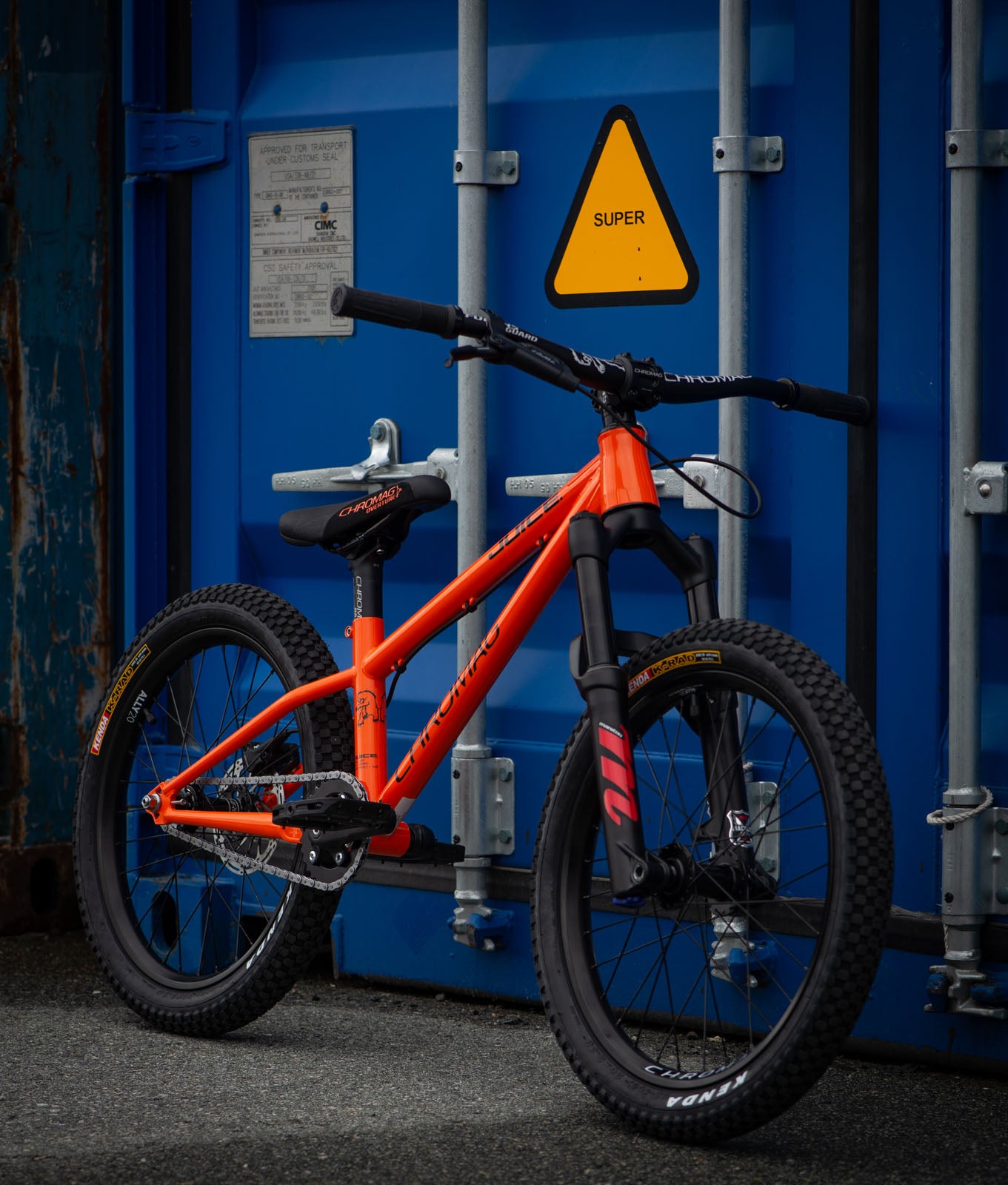

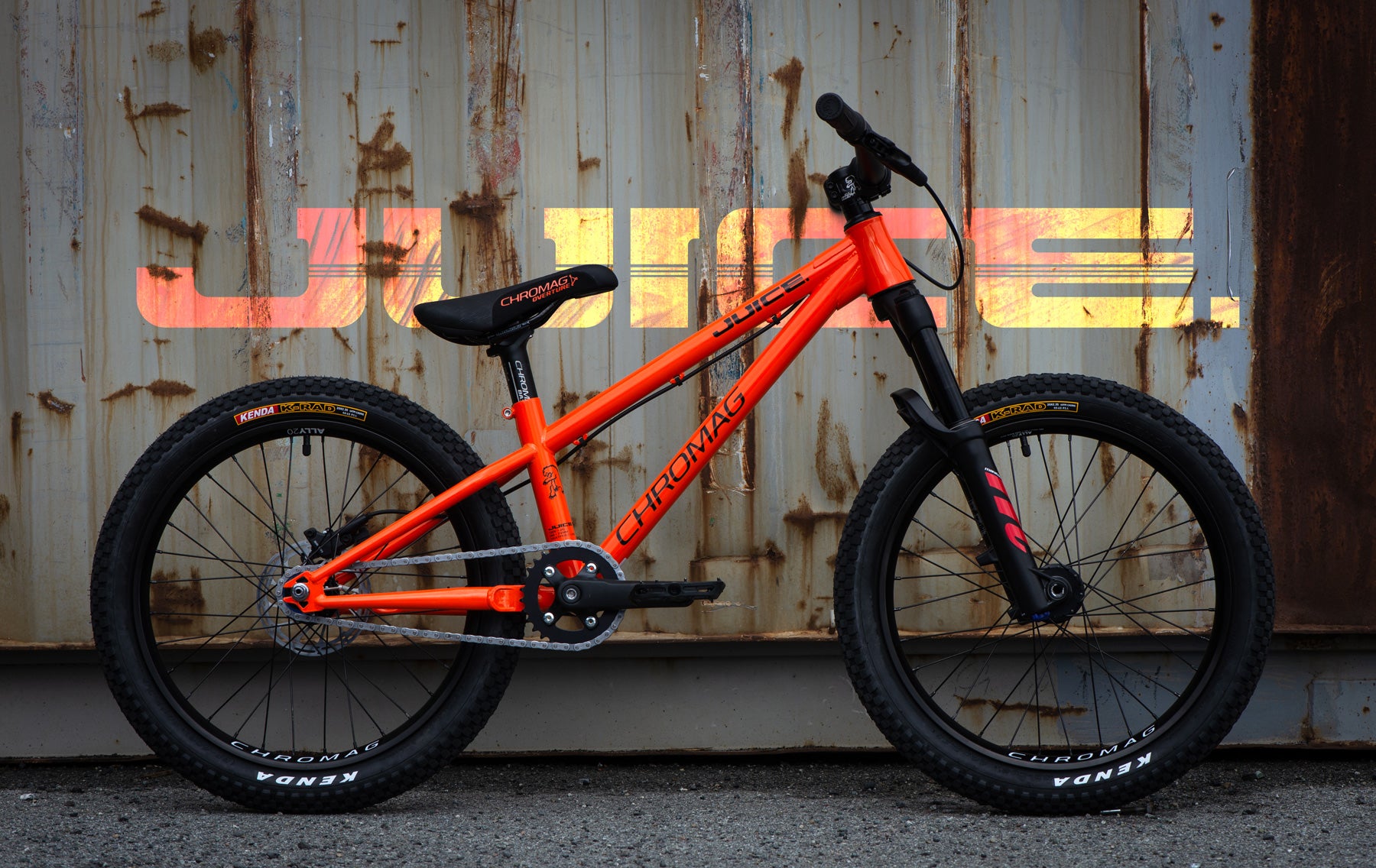

The Juice is available in 20 and 24” wheel sizes, in both Grape and Tang colourways. Read on below for all the specs, build and sizing details.
|Frame Size||20"Typical Rider Height: 109cm - 135cm||24"Typical Rider Height: 130cm - 155cm|
WHEEL SIZE // 20" / 24"
REAR TRAVEL // Nah!
RECOMMENDED FORK TRAVEL // 100mm
MATERIAL // 4130 Cr-Mo
WEIGHT (S2) // Complete: TBD
HUB SPACING // 135x10mm Thru axle with nut
HEADSET // 44-56 Semi Integrated
SEAT CLAMP SIZE // Integrated
SEAT POST SIZE // 31.6mm
BB // 73mm Threaded
HANGER // None (Horizontal Dropouts)
BRAKE MOUNT // I.S.
FRAME ORIGIN // Taiwan
Switching wheel sizes is not possible on the Juice.
FORK // Manitou Machete, 100mm
STEM // Chromag HiFi BSX 31mm
HANDLEBAR // Chromag Vanguard, 720mm, 31.8mm
HEADSET // Cane Creek Forty ZS
CRANK // SAMOX, 127mm, 32t
BRAKE // SRAM Level
ROTOR // SRAM 140mm
CASSETTE // 16t or 14t
CHAIN // KMC
RIMS // Chromag Ally
HUBS // Chromag D1
TIRES // Kenda K RAD
SEATPOST // Chromag Bassix
SADDLE // Chromag Overture
GRIPS // Chromag Format
PEDALS // Not Included

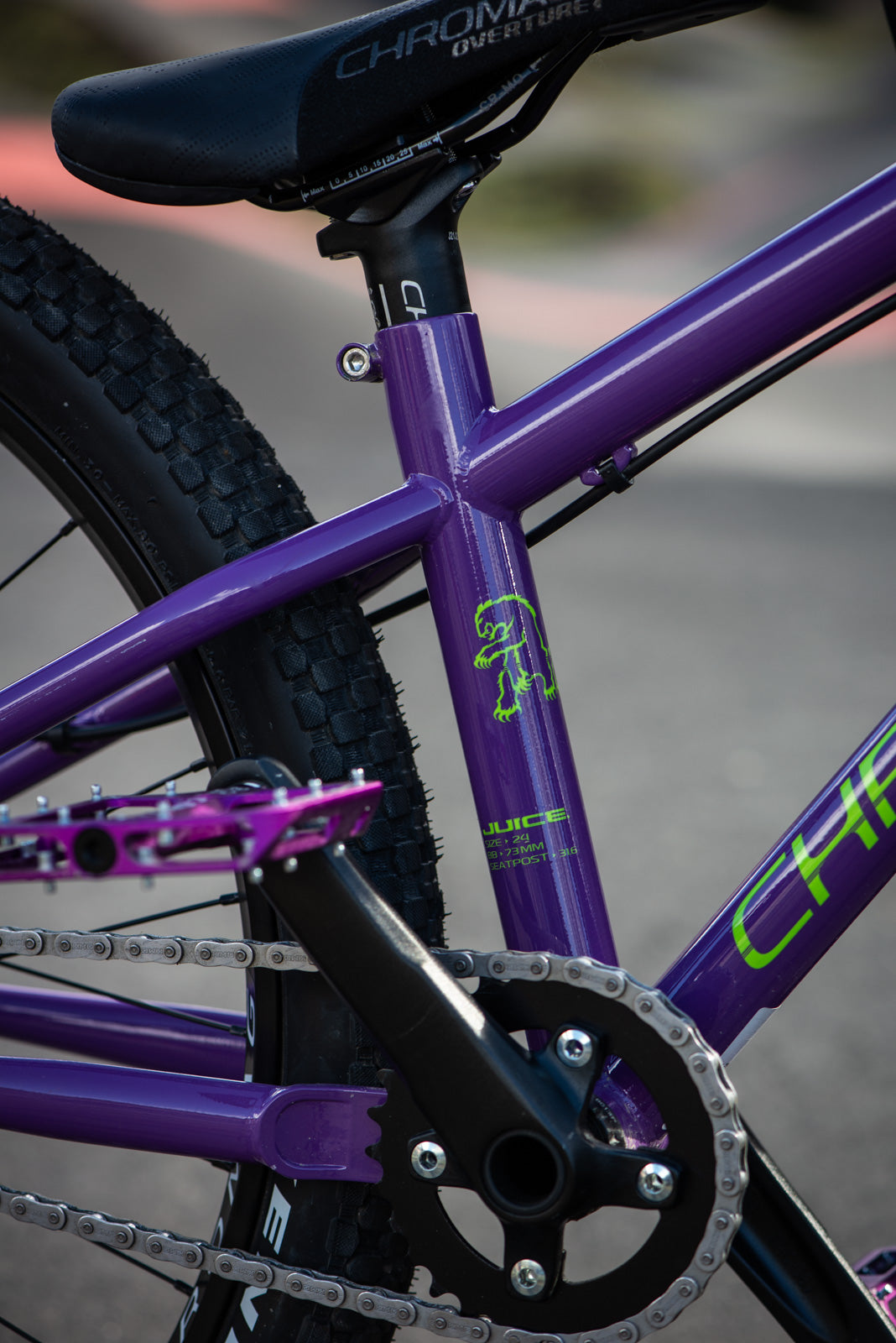

The Juice is built from quality 4130 chromoly steel tubing. Chromoly is an abbreviation for chromium-molybdenum indicating the materials that the steel is alloyed with.
The added chromium helps increase the steels hardenability and also provide some corrosion resistance. The molybdenum helps to increase the toughness of the steel.
It has a high tensile strength but is also malleable which is what gives our frames their notorious ride quality and feel. Chromoly is often used when more strength is required than that of mild carbon steel.
It falls under the AISI (American Iron & Steel Institute) 41XX designations which is where the “41” comes from. The “30” indicates it contains approximately 0.30% carbon by weight.
Chromoly is much stronger than traditional 1020 steel and it has a higher strength to weight ratio and high tensile strength, which means we can use less material and achieve a product that can withstand the abuse that riders love to throw at it.
Like all our products, the Juice was designed with durability and serviceability in mind.
The Juice is made by a skilled team of frame builders in our factory in Taiwan, who are renowned for their work on the Monk.
It is also poured over with care and attention to detail by our skilled mechanics right here in Whistler, BC.
