Our classic 26" chromoly dirt jumper.
The Monk features our unique stainless steel horizontal dropout system for minimal complications with single-speed/disc brake setup. Our custom chain stays paired with dedicated DJ geometry offer you a light and incredibly stiff rear triangle on a low slung steel weapon.
The Monk now features our chain tug integrated into the dropout on both sides. For 2020 we're featuring a signature colourway designed by Chromag shredder and all-round nice guy Marcel Hunt.

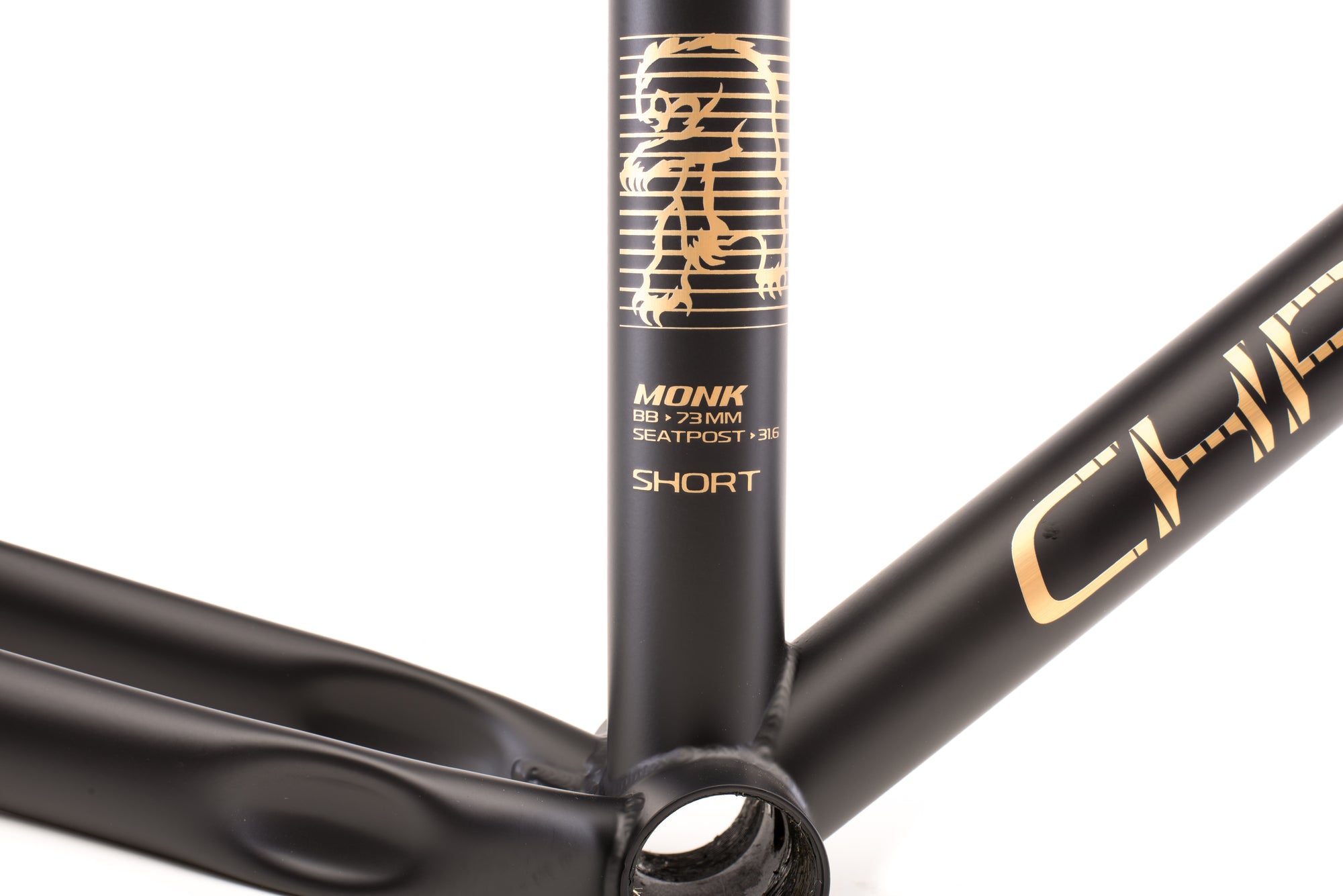

Almost all Chromag frames are made from quality 4130 chromoly steel tubing. Chromoly is an abbreviation for chromium-molybdenum indicating the materials that the steel is alloyed with.
The added chromium helps increase the steels hardenability and also provide some corrosion resistance.
The molybdenum helps to increase the toughness of the steel.
It has a high tensile strength but is also malleable which is what gives our frames their notorious ride quality and feel. Chromoly is often used when more strength is required than that of mild carbon steel.
It falls under the AISI (American Iron & Steel Institute) 41XX designations which is where the “41” comes from. The “30” indicates it contains approximately 0.30% carbon by weight.
Chromoly is much stronger than traditional 1020 steel and it has a higher strength to weight ratio and high tensile strength, which means we can use less material and achieve a product that can withstand the abuse that riders love to throw at it.
Front Hub Spacing // 100 x 15mm
Headset // 44-56 Semi Integrated
Seat Clamp Size // Integrated
Seatpost Size // 31.6mm
BB // 73mm Threaded
Wheel Size // 26"
Recommended Fork Travel // 80 - 120mm
Click here to view the frame user guide.
|PARTS||SINGLE SPEED 26"||SINGLE SPEED 24"|
|FORK||Rock Shox Pike DJ 100mm||Rock Shox Reba 100mm|
|STEM||Chromag HiFi 31mm||Chromag HiFi 31mm|
|HANDLEBAR||Fubars FU40 40mm Rise, 780mm Wide||Fubars FU40 40mm Rise, 780mm Wide|
|HEADSET||Cane Creek Forty ZS||Cane Creek Forty ZS|
|CRANK||Descendant 170mm||Descendant 155mm|
|BRAKE||SRAM Level (Rear Only)||SRAM Level (Rear Only)|
|CASSETTE||16t Single Speed||16t Single Speed|
|RIMS||Chromag Ally 26" 32h.||Chromag Ally 24" 32h.|
|HUBS||Chromag D1 4 pawl 32h.||Chromag D1 4 pawl 32h.|
|TIRES||Maxxis Ikon||Maxxis Snyper|
|SEATPOST||Chromag Bassix 31.6||Chromag Bassix 31.6|
|SADDLE||Chromag Overture||Chromag Overture|
|GRIPS||Chromag Wax||Chromag Wax|
|FRAME ONLY||$860 CAD
Build options are subject to availability and liable to change without prior notice.
To purchase a complete build, please contact us directly. We are happy to answer all your questions about our bikes and products. Call: 604-905-6667 Email: email@example.com
*US pricing applies to all US and International purchases.
Head Tube Badge
Your bike is special. The head tube badge is the finishing touch so we’ve always made a point of taking the time to do something interesting with it. Our head tube badges have changed over the years and are an indication of the time each bike was made. Whether it’s a cast bronze, or polished stainless steel, water cut aluminum or a 3D CNC carving, each one represents our commitment to detail.
The Monk features horizontal dropouts, designed so you can run single speed without having to use a chain tensioner. They are also fully compatible with your disc brakes.
We leave them unpainted so your axle doesn't dig in and ruin the paint.
The Monk comes with holes in the headtube ready to accept gyro tabs. If you like to throw the bars so much you run out of brake line, then having a gyro is key.
|Frame Size||X-ShortTypical Rider Height: 137cm - 168cm||ShortTypical Rider Height: 160cm - 178cm||LongTypical Rider Height: 170cm - 188cm||X-LongTypical Rider Height: 180cm - 198cm|
